| Series | Description | |
| Single Version: | Xenon X 300-M | 300 Watt xenon lamp, Storz adapter, manual light intensity control |
| Xenon X 300-A | 300 Watt xenon lamp, Storz adapter, automatic light intensity control | |
| Xenon X 300-AT | 300 Watt xenon lamp, turret adapter, automatic light intensity control | |
| Backup version: | Xenon X 300M-LED | 300 Watt xenon lamp, Backup LED lamp, 2x Storz adapter manual light intensity control |
| Xenon X 300A-LED | 300 Watt xenon lamp, Backup LED lamp, 2x Storz adapter automatic light intensity control |
|
| Xenon X 300AT-LED | 300 Watt xenon lamp, Backup LED lamp, 2x turret adapter automatic light intensity contro |
|
| Technical Data | ||
| Lamp: | Main: · Xenon arc lamp: 300 W · Daylight quality, 5600 K · · Lifetime: 500 hr (expected) |
Backup (optional): · White LED lamp · Daylight quality, 6500 K · Lifetime: > 20.000 hr |
| Light guide connection: Voltage range (current consumption): Frequency: Device protection: Video In (optional): |
· Storz, Wolf, Olympus or turret adapter · 100-240 V (300W light source: 370 VA) · 50-60 Hz · 2x T6,3 A · 1x Video (automatic Version only |
|
| Protection class (acc.to IEC 60601-1): Safety class: IP code: Standard: Device classification (EU) 2017/745, annex VIII: |
· I · BF · 20 · IEC 60601-1-2 · I |
|
| Dimensions (WxHxD): Weight: |
· 355mm x 120mm x 340mm · approx. 12,5 kg (300W) |
|
| Delivery contains: | · Light source, mains cable, user manual, BNC cable (optional) | |

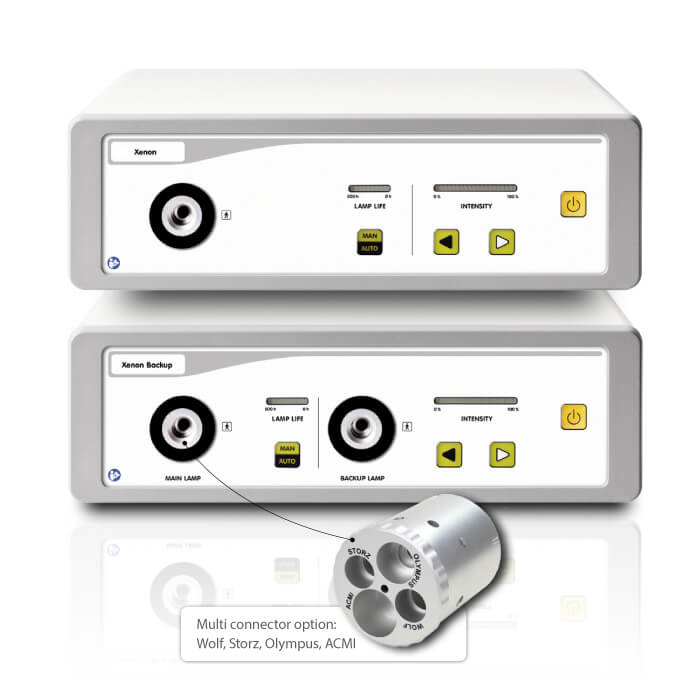

| Options: | · Automatic light intensity control · Backup LED lamp · Multi connector option, turret: |
|
| Wolf |  |
| ACMI |  |
| Olympus |  |
| Storz |  |
