| Technical Data | ||
| Camera head: | · Aspect ratio: 16:9 · Image sensor: 3x 1/3» MOS · Immersible (using the attached cap) |
|
| Voltage range (current consumption): Frequency: Device protection: |
· 100-240 V (50 VA) 50-60 Hz 2x T3,15 A |
|
| Video system: | · Image resolution: full HD 1920 x 1080 · TV resolution: > 1000 lines · Sensitivity: < 3 lux (1/1.4) · White balance automatically, with data hold shutter speed: 1/50 (1/60) to 1/100.000 sec |
|
| Recording (optional) | · Image format: JPG 1920 x 1080 · Video format: Full HD 1920 x 1080; Mpeg-4 (H.264 Codec); Image rate 60fps · Connection: USB (A) |
|
| Connections | Video out terminal: · 2x HD SDI · 1x HDMI / DVI · 1x Y-Pb-Pr (Component) · 1x Y/C (PAL / NTSC) · 1x CVBS (PAL / NTSC) |
Other connections: · 1 x USB (A) (USB-keyboard) · 1 x Remote IN (footswitch) · 1 x Remote OUT (video printer, video recorder,…) · 1 x RJ45 (Service) |
| Protection class (acc.to IEC 60601-1): Safety class: IP code: Standard: Device classification (EU) 2017/745, annex VIII: |
· I · BF · IP20 · IEC 60601-1-2 / IEC 60601-1-1 · I |
|
| Features: | · White balance, boost function · On-screen-menu · 3 user settings storable |
· 2.5 digital zoom · Freeze function · Character generator |

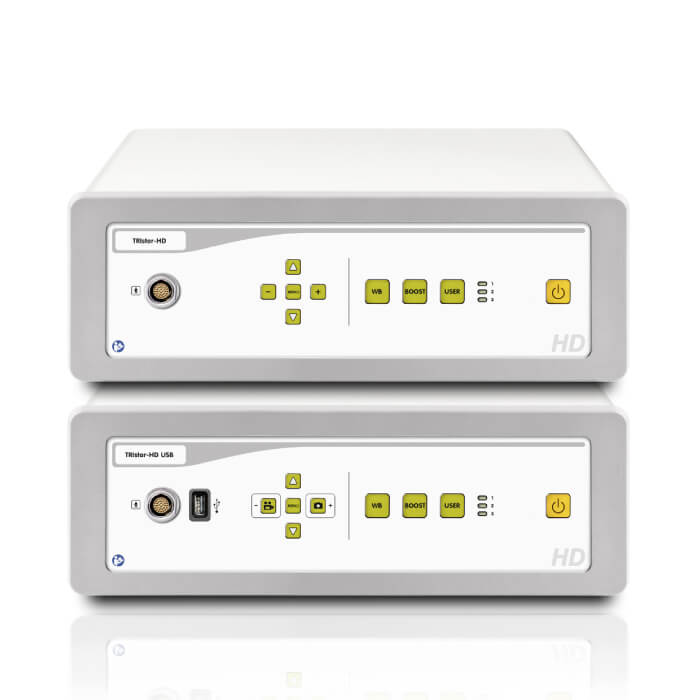

| Dimensions (WxHxD): | Control unit: 360mm x 125mm x 351mm; 4,5 kg | |
| Delivery contains: | · CCU, camera head with 3,05m (10ft) cable, mains cable, Y/C cable, BNC cable, HDMI – DVI cable, HDMI cable, user manual |
|
| Options |
||
| Features: | · Image capture, video capture | |
| Optional accessories: | · Waterproof keyboard · Footswitch |
|
| Swift 1HD camera head |
||
 |
· Weight: 145 g · Size: d= 38,5 mm; l= 81 mm |
|
