| Technical Data | ||
| Camera head: | · Aspect ratio: 16:9 · Image sensor: 3x 1/3» MOS · Immersible (using the attached cap) |
|
| Voltage range (current consumption): Frequency: Device protection: |
· 100-240 V (50 VA) 50-60 Hz 2x T3,15 A |
|
| Video system: | · Image resolution: UHD 3840 x 2160 · Sensitivity: < 3 lux (1/1.4) · White balance automatically, with data hold |
|
| Video output: | · 1 x HDMI 4K (3840 x 2160) · 1 x HDMI Full HD (1920 x 1080) · 1 x SDI 4K (4 x BNC) (3840 x 2160) · 1 x SDI Full HD (1 x BNC) (1920 x 1080 |
|
| Video format: | · HDMI output: | · 3840×2160/59.94p, 3840×2160/50p, · 1920×1080/59.94p, 1920×1080/59.94i, · 1920×1080/50p, 1920×1080/50i |
| · SDI output: | · 3840×2160/59.94p, 3840×2160/50p, · 1080/59.94p, 1080/59.94i, · 1080/50p, 1080/50i |
|
| Protection class (acc.to IEC 60601-1): Safety class: IP code: Standard: Device classification (EU) 2017/745, annex VIII: |
· I · BF · IP 20 · IEC 60601-1-2 / IEC 60601-1-1 · I |
|
| Dimensions (WxHxD): | · 360mm x 125mm x 351mm | |
| Weight: | · approx. 6,2kg | |
| Delivery contains: | · CCU, camera head with 3,05m cable (10ft), mains cable, HDMI cable, User manual |
|
| Options |
||
| Features: | · Image capture, video capture | |

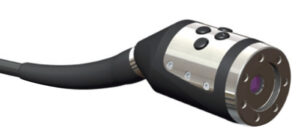

| TRIstar 4K camera head |
||
 |
Weight: approx. 200g Diameter: 43mm Length: 85,7mm (without grommet) With 4 push buttons |
|

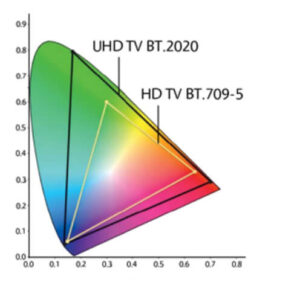

| Colour space |
||
 |
The camera is able to reproduce the extended color space BT.2020 in addition to the BT.709 color space for HDTV. (Prerequisite is a BT.2020 compatible monitor) |
|
