| Series | Description |
| SLED 3000plus | Storz adapter, automatic light intensity control |

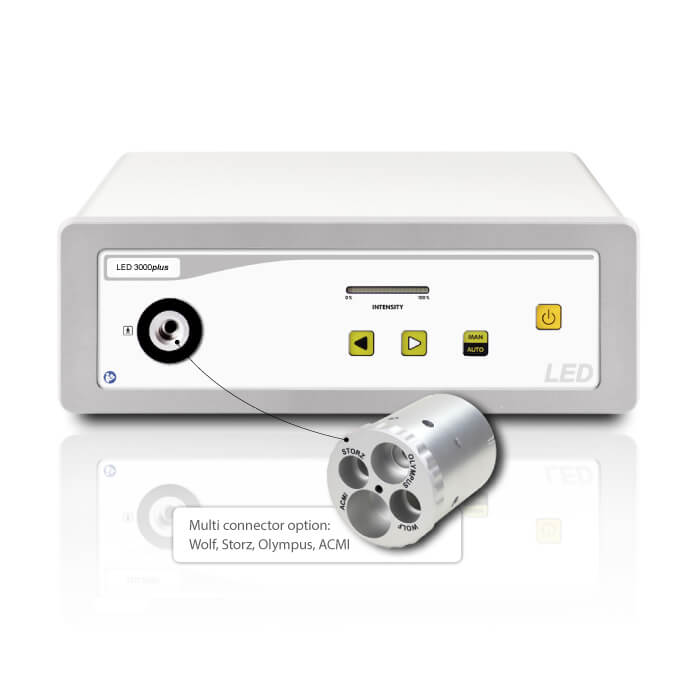

| LED 3000 | Turret adapter, automatic light intensity control |
| Technical Data | ||
| LED module: | · LED CRI 90, Daylight quality, approx. 5600 K · Lifetime: > 20.000 hr |
|
| Voltage range (current consumption): Frequency: Device protection: Video In: Other connections: |
·100-240 V (130 VA) · 50-60 Hz · 2x T3,15 A · 1x Video, BNC · Service (RJ45 |
|
| Protection class (acc.to IEC 60601-1): Safety class: IP code: Standard: Device classification (EU) 2017/745, annex VIII: |
· I · BF · 20 · IEC 60601-1-2 · I |
|
| Dimensions (WxHxD): Weight: |
· 360mm x 125mm x 351mm (without Turret) · approx. 5 kg |
|
| Delivery contains: | · Light source, mains cable, user manual, BNC cable (optional) | |

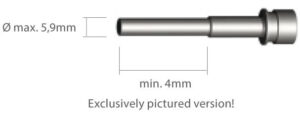

| Light guide connection: | · Storz (standard connection) | |
IMPORTANT:
Use only high-performance light cables / high-temperature-resistant light guides!

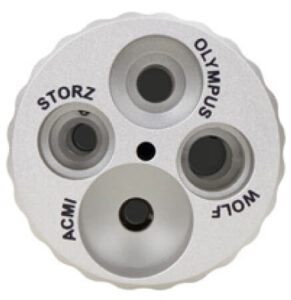

| Wolf |  |
 |
| ACMI |  |
|
| Olympus |  |
|
| Storz |  |
